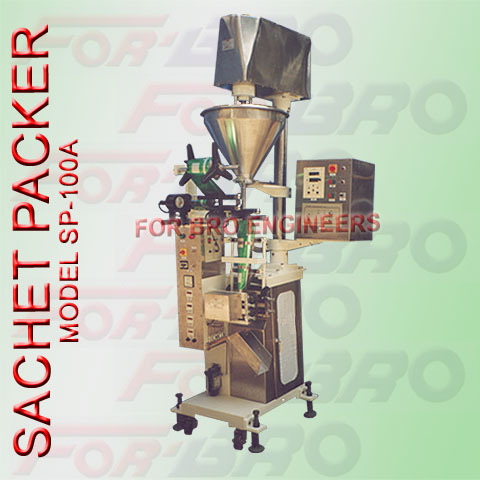

Industrial SS Sachet Packer Machine

About Industrial SS Sachet Packer Machine

Sachet Packer - For Paste

Sachet packing machines offer packing solutions for powders, granular products, liquids and pastes mainly in small size unit packs. Varity of dozing heads available makes these machines capable of handling various products with different physical properties. Machines packs product in to 3 or 4 side sealed pillow pouches formed from printed laminate roll . Photoelectric registration helps in precise print positioning on the pouch is provided.

Suitable for

- Small Quantity of Paste like Chocolate, Peanut butter, Ketchup, Chutney,Creame

Other Dozing Units

- Auger Filler: With Photoelectric sensor controls for dozing of non-free flowing/fluffy powders
- Volumetric Cup Filler: With/Without volume adjustment for free flowing powders
- Liquid Dozer: Piston pump with micro adjustment of volume
- Paste Filler: For dozing of thick viscous liquids with pump and pressure screw if required

Salient Features :

- Easy changeover of pack size and output control.
- GMP and Standard models.
- Robust construction with user friendly controls.
- Photoelectric registration for precise print positioning.
- Contact parts made from S.S.304 (S.S.316 contact parts on request)
- Models with dozing head for granules / powder / liquid / tablet available.

Technical Specifcations

Item	Parameters	Specifications
Operational Specifications	Capacity	From  5ml to 25gms paste
	Control	Electromechanical  with photoelectric sensor.
	Operation  mode	Automatic
	Packing speed	Upto  30 pouches per minute with single tracks depending upon the product density and packsize.
	Pouch formation	With liner former  with max size upto 220mm width of laminate.
	Pouch type	Three side sealed  /four side sealed
	Max pouch size	100mm x 150mm max.
	Vertical seals	Roll  pulling and vertical seales with die rollers through epicyclic gear train.
	Horizontal seals	With  rotary cross seal rollers with eccentric  for matching of linear speed of pouch movement.
	Heaters	Cartridge heaters  250w x2nos.
		Cartridge heaters 250w x 2nos.
	Dozer	Syringe  based paste filling unit with pneumatically operated  valve mechanism  and clutch to dis-engage the  filling operation.. One set of syringe and piston will be provided for one  paksize range.
	Dozer hopper	A dozer hopper,  directly mounted on the valve body .   Capacity: 8 litres.
	Filling accuracy	+ 3% for  homogeneous paste.
Optional	Tailcutting unit	Pneumatically operated tail cutting arrangement can be provided optionally.
	Jacketed hopper	jacketed hopper with immersion type heaters with temperature contoller can be provided
Control panel	Moc	Inbuilt with the machine. M.s.body
	Controller	Solid state  electronic controller with photoelectric sensor for  print mark registration.
	Temperature controllers	Digital time proportional  temperature controllers with j type thermocouples.
Drive	Motors	0. 5 h.p. Single phase . For main machine (variable speed drive optional)
	Gear box	Worm reduction gear box
Physical specificaions	MOC	All parts coming in direct contact of the product made from s.s. 304. All other parts made from MS/CI ( for GMP models all parts are made from s.s.304 / covered with ss304 sheets/ ENP coated.)
	Main machine	900mm x1000mm x 1800mm
	Net Weight	450KGS Approx
	Mobility	Provided with Castor Wheels

Precision Control with Advanced PLC System

This sachet packer machine employs a state-of-the-art PLC control mechanism, ensuring high accuracy and minimal error during the packaging process. Its user-friendly interface allows operators to easily set parameters, monitor production, and adjust for different product types, maximizing efficiency and output.


Built for Industrial Durability

Constructed from both mild steel and stainless steel, this heavy-duty machine withstands rigorous industrial usage while maintaining superior durability. The robust casing protects critical components, prolonging the operational lifespan and reducing overall maintenance costs for busy manufacturing environments.


Comprehensive Support and Warranty Coverage

All machines are accompanied by a one-year warranty, underscoring our commitment as a leading exporter, manufacturer, and supplier in India. Customers can rely on prompt support, ensuring continuous operation and timely resolution of any technical issues that might arise.
